Ld-PTFE Silver Plated Copper Wire DC-40GHz RF Microwave Test Cable Assembly

StructureInner Conductor: Silver Plated CopperInsulation:  LD-PTFEInner Shield: Silver Plated Copper StripInterlayer:LD-PTFEOuter Shield: Silver Plated Copper WireJacket: FEPMechanical CharacteristicsDimensionmminchInner Conductor0.920.036Insulation2.500.098Inner Shield2.660.105Interlayer2.950.116Outer S

Featured Products

Structure
Inner Conductor: Silver Plated Copper
Insulation:  LD-PTFE
Inner Shield: Silver Plated Copper Strip
Interlayer:LD-PTFE
Outer Shield: Silver Plated Copper Wire
Jacket: FEP

Mechanical Characteristics
Dimensionmminch
Inner Conductor0.920.036
Insulation2.500.098
Inner Shield2.660.105
Interlayer2.950.116
Outer Shield3.110.122
Jacket3.800.150
Weight0.033kg/m
Min Bending Radius( Dynamic 38.0mm),( Static 14.4mm)
Insertion/Withdrawal>5000
Operating Temperature-55ºC~+165ºC
Electrical Characteristics
VSWR Max 18GHz26.5GHz40GHz
 2.92 mm1.25:11.30:11.30:1
 2.4 mm1.25:11.30:11.30:1
Impedance50 ohms
Velocity of Propagation76%
Screening Effectiveness>90 dB
Amplitude Change  VS Temperature≤±0.04dB@40GHz
Phase Change VS Bending≤±4°@40GHz
Attenuation(25ºC)
Frequency(MHz)dB/100ftdB/100m
100011.437.5
300020.065.7
600028.693.8
1000037.3122.4
1200041.4135.8
1800050.8166.7
2650062.4204.8
4000077.7254.8
Power handling(25ºC,Sea Level,Cable)
Frequency(MHz)Watts
1000509
3000291
6000203
10000156
12000141
18000115
2650093
4000075


Package and Shipment Details:

1) Neutral Master Carton Package;
2) Customized Package;

Ld-PTFE Silver Plated Copper Wire DC-40GHz RF Microwave Testing Cable Assembly

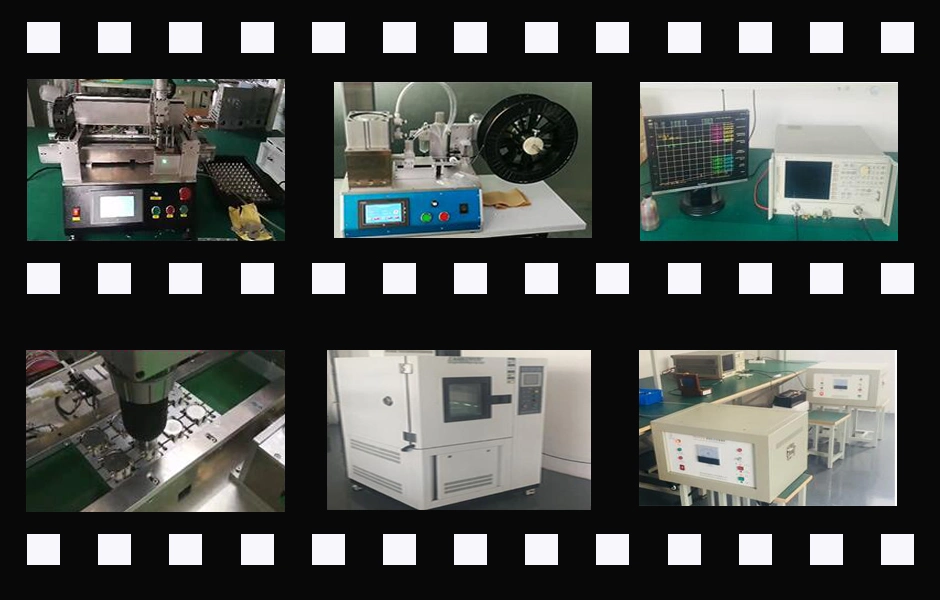

Product Equipment Line:
